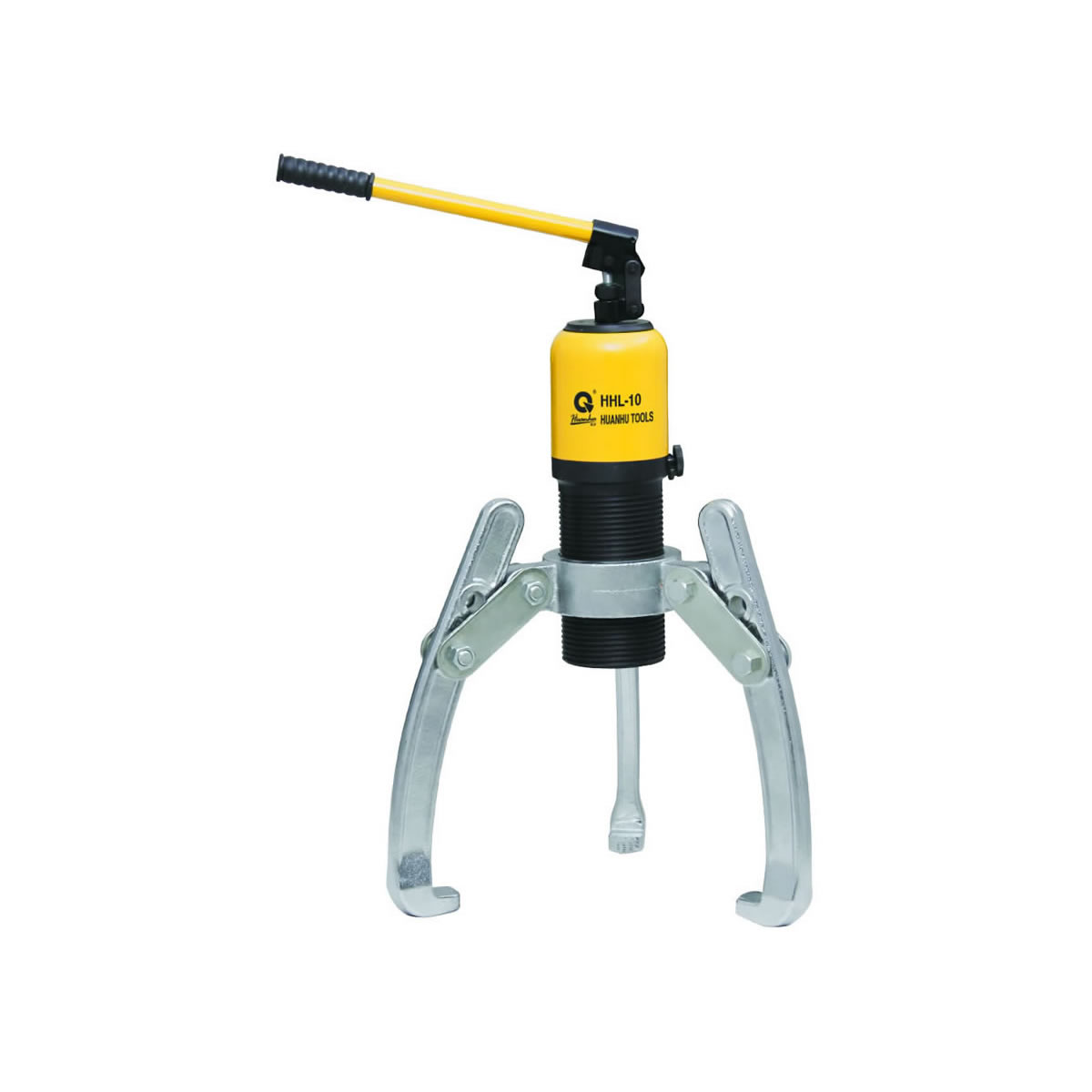

Self-Contained Hydraulic Pullers
Model: HHL-5,HHL-10,HHL-20,HHL-30,HHL-50
Characteristics:
These tools are designed for removing a wide variety of gears, bearings, bushings,
pulleys and other press-fitted parts.
Working pressure: 700bar
●Use with 2 or 3 jaws.
●High quality,forged steel jaws and crosshead provide superior
reliability and service.
●Precise hydraulic control allows fast,efficient and safe pulling.
●High force hydraulic system for effortless pulling of large components.
●More efficent pulling,as one man can do the job where manual pullers ofter require two operators.

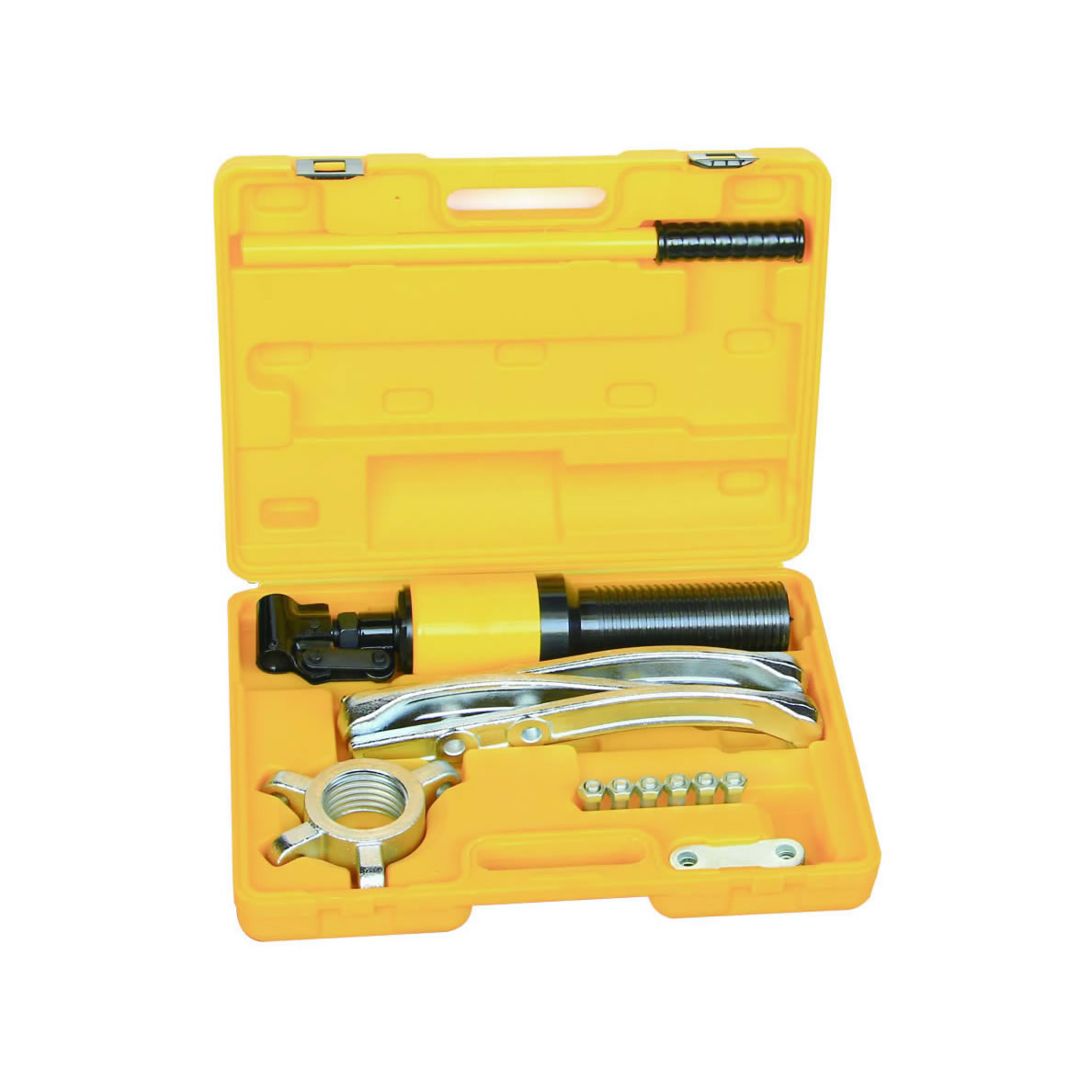

●Spring loaded live centering cone. 5,10 and 20 ton sets all contained in a plastic carry case. 30 and 50 ton sets all contained in a robust wooden box.

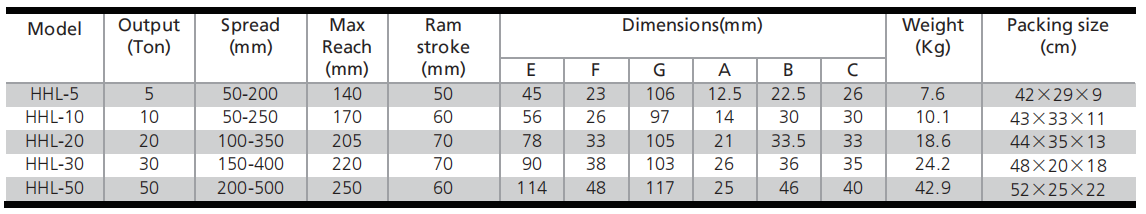

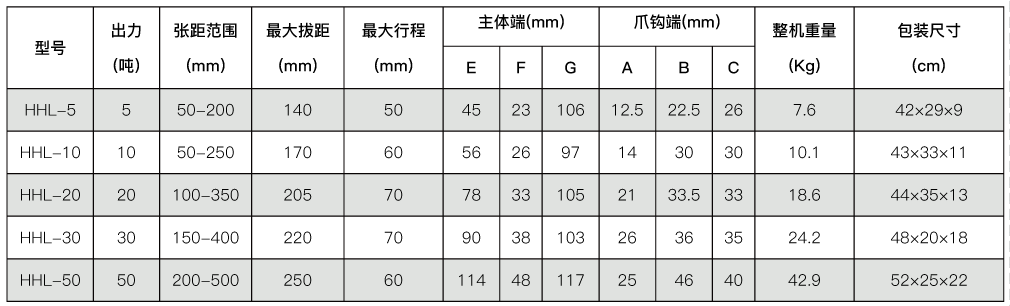

Parameters:
